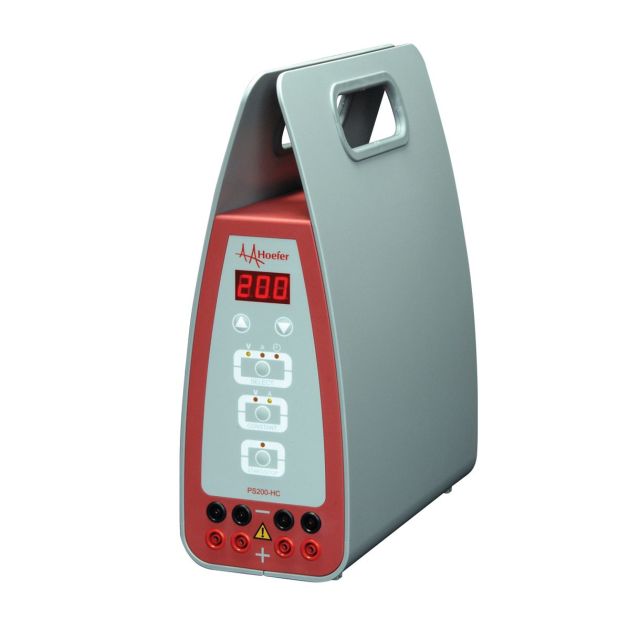

The PS200HC is ideal for large electrophoretic blotting applications and for low voltage electrophoresis runs. The small footprint, large handle, and simple operation makes the PS200HC easy to set up and use in your lab. With the large, easy to read LED, simply set the constant parameter, set the timer (if desired), and push start.

Features:

• Constant voltage or constant current mode with automatic crossover
• 5 to 200 V, 10 to 2000 mA, 200 W
• Four sets of 4 mm output jacks
• Ideal choice for blotting applications
• Continuous runs or 999 minute timer
• Automatic recovery after power failure
• Open circuit detection
• Short circuit protection

Modes of Operation:

• Constant Voltage Mode—the power supply will attempt to maintain the user selected voltage by automatically adjusting the current flow
• Constant Current Mode—the power supply will attempt to maintain the user selected current flow by automatically adjusting the voltage supplied
• Automatic Crossover—when the constant parameter (voltage or current) cannot be maintained due to power supply operating limits the power supply automatically switches to maintaining the other parameter

  Voltage	5 to 200 V in 1 V step
  Current	10 to 2000 mA in 1 mA steps
  Maximum Wattage	200 W
  Timer	0 to 999 minutes
  Output Modes	Constant voltage or current
  Output Jacks	4 in parallel, 4 mm
  Indoor Use	4 to 40°C
  Humidity	80%
  Universal Voltage Input	100 to 240 VAC, 50/60 Hz
  Unit Dimensions (W x H x D)	12.5 x 33.5 x 28 cm
  Weight	2.4 kg
