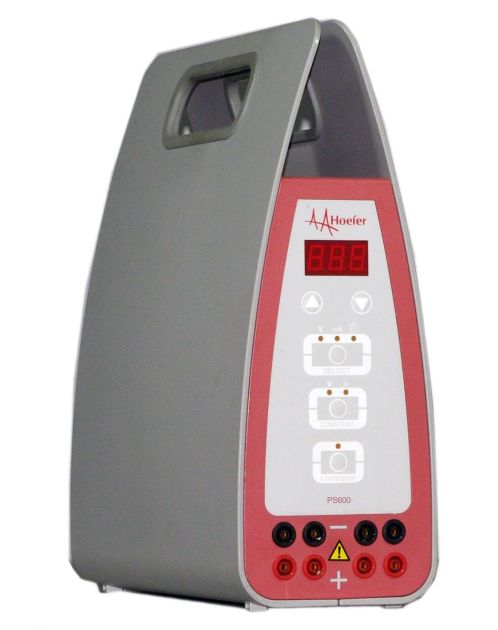

The midrange PS600 600 V Power Supply is designed for electrophoresis and blotting techniques including large format and high throughput applications. The small footprint, large handle, and simple operation make the PS600 easy to set up and use in your lab. With the large, easy to read LED, simply set the constant parameter, set the timer (if desired), and push start.

Features:

• Constant voltage or constant current mode with automatic crossover
• 5 to 600 V, 3 to 750 mA, 150 W
• Four sets of 4 mm output jacks
• Ideal choice for most electrophoresis techniques
• Continuous runs or 999 minute timer
• Automatic recovery after power failure
• Open circuit detection
• Short circuit protection

Modes of Operation:

• Constant Voltage Mode—the power supply will attempt to maintain the user selected voltage by automatically adjusting the current flow
• Constant Current Mode—the power supply will attempt to maintain the user selected current flow by automatically adjusting the voltage supplied
• Automatic Crossover—when the constant parameter (voltage or current) cannot be maintained due to power supply operating limits the power supply automatically switches to maintaining the other parameter

  Voltage	10 to 600 V in 1 V step
  Current	4 to 750 mA in 1 mA steps
  Maximum Wattage	150 W
  Timer	1 to 999 minutes, 1 min increment
  Output Modes	Constant voltage or current
  Output Jacks	4 pairs in parallel, 4 mm plugs
  Indoor Use	4 to 40°C
  Humidity	0 to 80%, noncondensing
  Universal Voltage Input	100 to 240 VAC, 50/60 Hz
  Unit Dimensions (W x H x D)	12.5 x 33.5 x 28 cm
  Weight	2.4 kg
