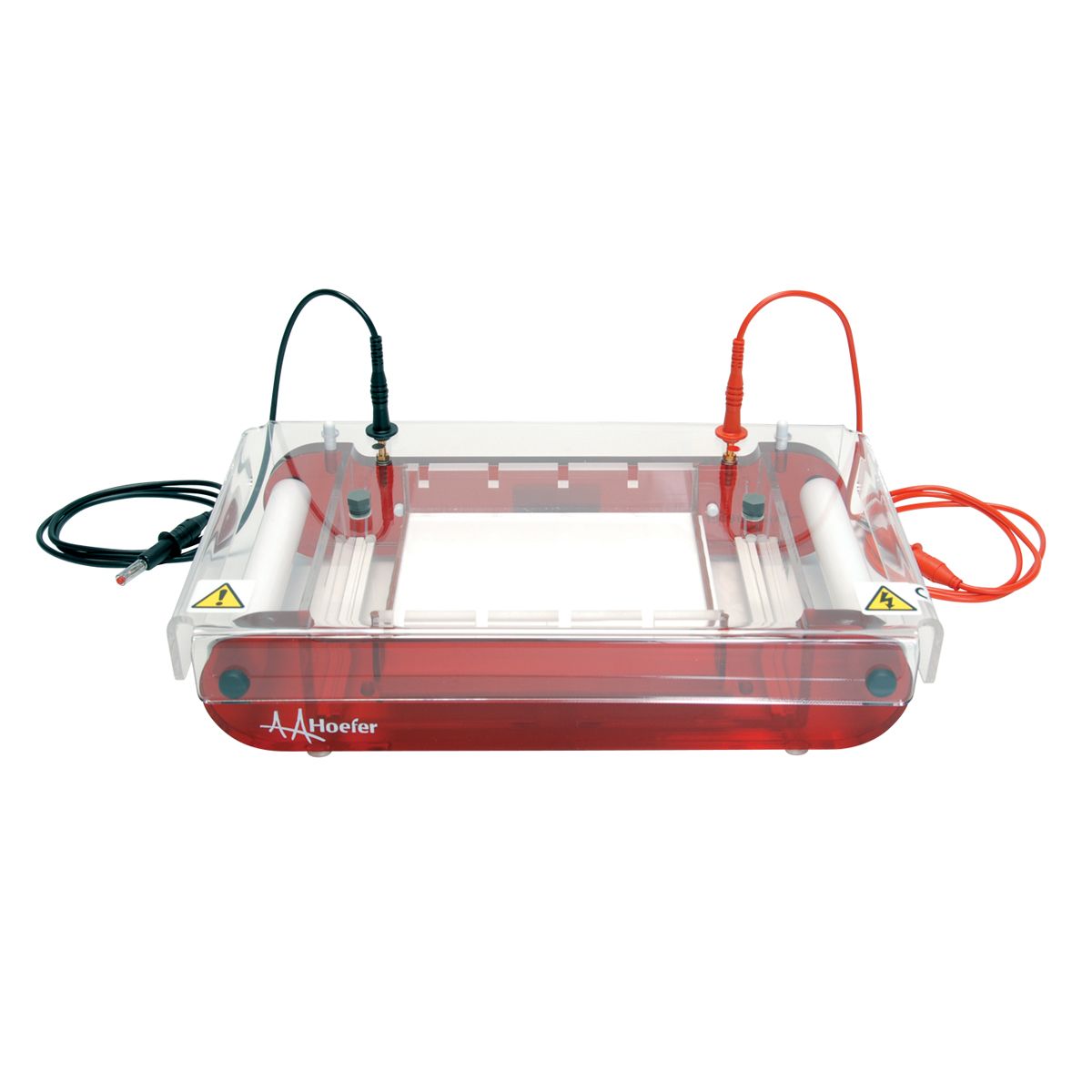

Midi Horizontal Electrophoresis System SUB13

 The SUB13 Midi Submarine Gel Unit is ideal for analytical and preparative studies of nucleic acids. It has a maximum 112-sample throughput capacity and features a removable gel-casting tray with end gaskets that allow gels to be cas tdirectly within the tank.

Features and Benefits

  • Color-coded and height adjustable combs—easily identify comb thickness at a glance and control well depth
  • Buffer recirculation ports—may be connected to a peristaltic pump for buffer recirculation during electrophoresis to maintain buffer pH and prevent ionic gradient formation
  • Colored loading strips—for easy well detection when loading
  • Compact tank—reduces the buffer volume required to cover the gel, providing greater control over the voltage gradient and run-time
  • UV-transparent running tray— allows the user to image the gel without risk of damage due to handling
  • Side handles—for safe and easy transportation around the laboratory

Includes:

  • Buffer Chamber Assembly
  • Safety Lid
  • High Voltage Leads
  • Running Tray with Silicone Gasket*
  • 1 mm thick, 16-well combs, 2 pcs
  • Colored Loading Strips
  • Buffer Recirculation Ports, 2 pcs

* The included running tray is lined with silicone gaskets which form a leak-proof seal against the inner walls of the running chamber when the running tray is turned 90° to the direction of electrophoresis.

Gel Dimensions (W x L) . . . . . . . . . . .  12.8 x 15 cm
 Maximum Buffer Volume . . . . . . . . .  900 ml
 Maximum Power Settings . . . . . . . . .  300 V, 200 mA, 60 W
 Maximum Sample Capacity . . . . . . .  112
 Maximum Running Temperature . . . .  45°C
 Indoor Use . . . . . . . . . . . . . . . . . . . .  4 to 40°C
 Humidity . . . . . . . . . . . . . . . . . . . . .  Up to 80%
 Unit Dimensions (W x L x H) . . . . . . .  20 x 32 x 7 cm
 Safety Certifications . . . . . . . . . . . . .  EN61010-1, CE
