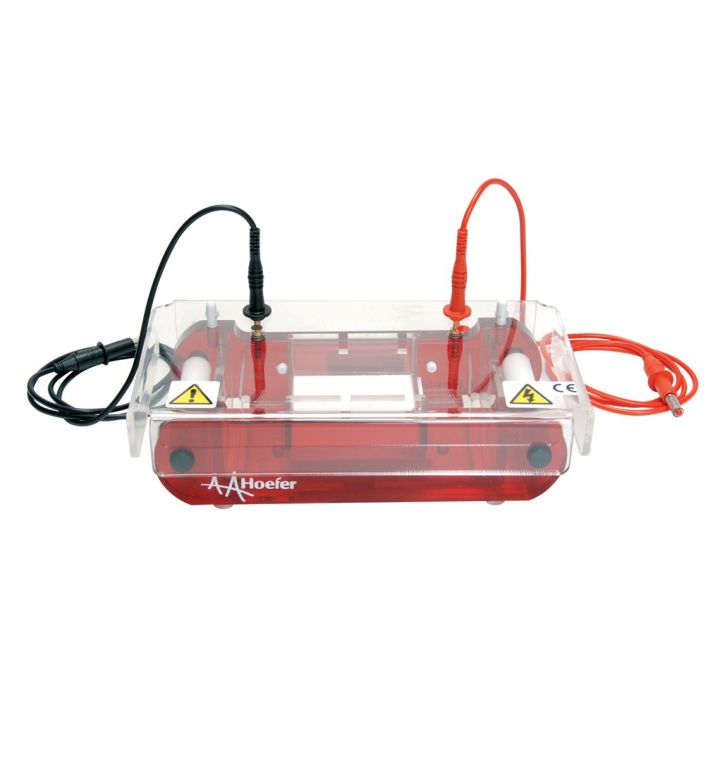

Mini Horizontal Electrophoresis Unit SUB6

 The SUB6 Mini Horizontal Gel Unit is ideal for routine nucleic acid preparatory and analytical electrophoresis techniques. It has a maximum 32-sample throughput capacity and features a removable gel-casting tray with end gaskets that allow gels to be cast directly within the tank.

Features and Benefits:

  • Color-coded and height adjustable combs—easily identify comb thickness at a glance and control well depth
  • Colored loading strips—for easy well detection when loading
  • Compact tank—reduces the buffer volume required to cover the gel, providing greater control over the voltage gradient and run-time
  • UV-transparent running tray—allows the user to image the gel without risk of damage due to handling
  • Side handles—for safe and easy transportation around the laboratory

Includes:

  • Buffer Chamber Assembly
  • Safety Lid
  • High Voltage Leads
  • Running Tray with Silicone Gasket*
  • 1 mm thick, 8-well combs, 2 pcs
  • Colored Loading Strips

* The included running tray is lined with silicone gaskets which form a leak-proof seal against the inner walls of the running chamber when the running tray is turned 90° to the direction of electrophoresis.

....
